Portable Hydrogen Oxygen Machine

PRODUCTS CHARACTERISTICS

  • Made of aviation aluminum alloy, beautiful and good for heat dissipation
  • One-touch button, easy to operate
  • Visual window, visible hydrogen production process
  • Minimalist design, compact and portable
  • SPE water electrolysis hydrogen production technology, hydrogen purity can reach 99.9992%
  • Built-in water purification filter to extend product life
  • Water tank, electrolyzer, hydrogen-water separation, power control board integrated into one machine
  • Customizable 100ml~300ml hydrogen flow
Facebook Linkedin Youtube

Product Description

Product name Portable Hydrogen Oxygen Machine
Gas output Hydrogen：100ml/min

Oxygen：  50ml/min

 Hydrogen：150ml/min

Oxygen：  75ml/min

 Hydrogen：300ml/min

Oxygen：150ml/min
Product Model S9100 S9150 S9300
Product size Appearance: 150*97*181mm Weight: 1000g Water tank capacity: 200ml
Product type Dual-tube configuration
Hydrogen purity >99.9992%
Water quality requirements Purified or distilled water
Input Power 12V/5A 12V/8A 12V/10A
Input Power 60W 96W 120W
Material Appearance: Aviation aluminum, ABS, PC Hydrogen generator: Aviation aluminum, pure titanium
* In order to improve quality, the company reserves the right to improve the design and performance of the product



The world’s first integrated kernel module

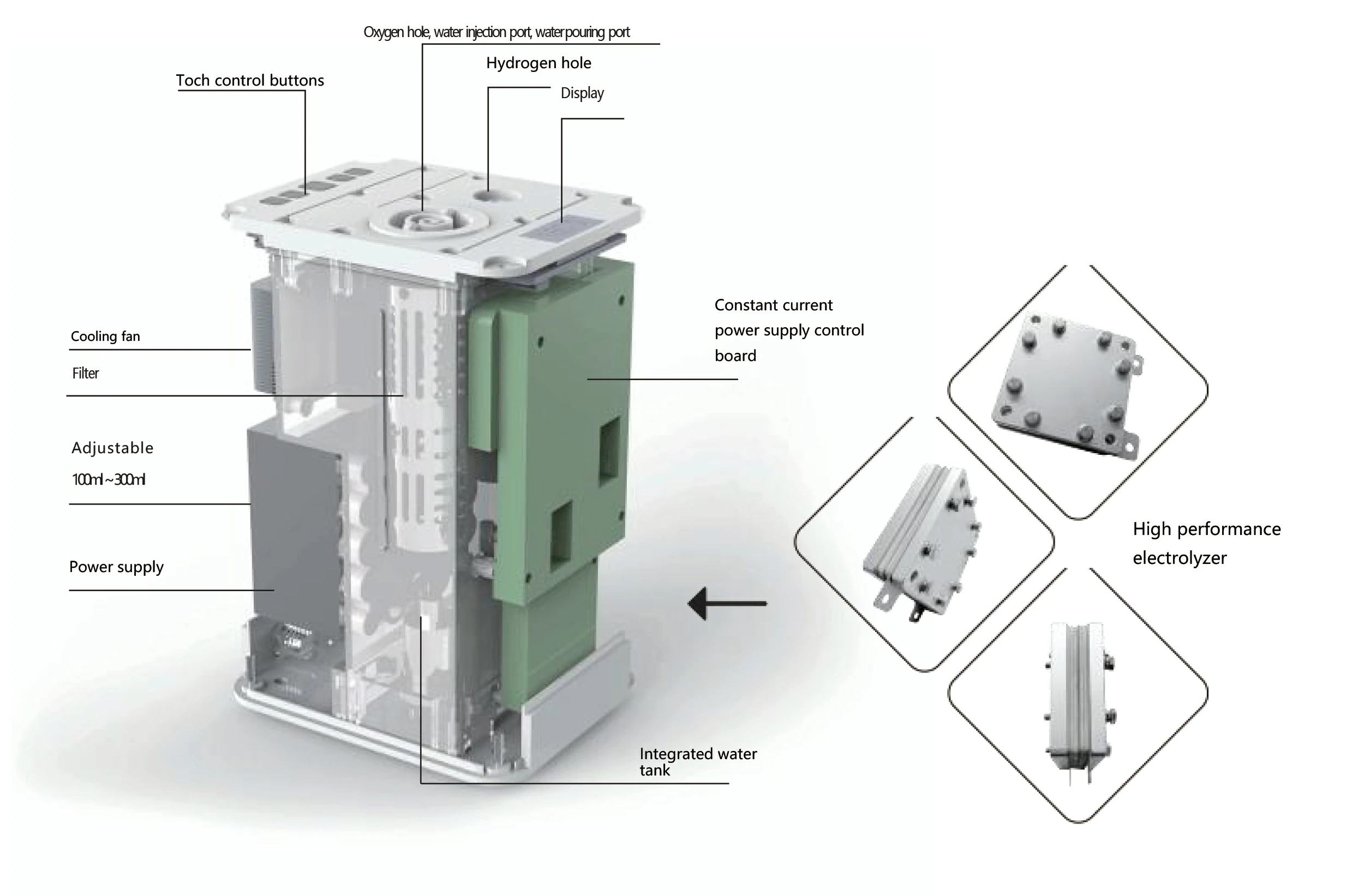

TECHNICAL CHARACTERISTIC

  • High-performance electrolyzer

Low current density, low internal resistance, stable performance and long life

  • Ultra-quiet power control board

The power supply and control board are integrated into one, ultra-quiet effect · The whole machine has no water pipe or air pipe connection

Avoid water and air leakage hazards

  • Lightweight and portable, can be used in the car

Small size, large air output, support car-mounted DC12V power supply · Unique heat dissipation structure

The hot water is naturally cooled by a special structure, no noise, high efficiency
